Specifications

PRICING

Price	Standard
Price - Warranty (Months)	6
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard
Engine - Engine Brand Name	ProStar™
Engine - Engine Type	Longitudinal Twin
Engine - Cylinders	2
Engine - Engine Stroke	4-Stroke
Engine - Horsepower (bhp)	68
Engine - Horsepower (kW)	50.7
Engine - Cooling	Liquid
Engine - Valves	4
Engine - Valves Per Cylinder	2
Engine - Valve Configuration	DOHC
Engine - Bore (mm)	93
Engine - Bore (in)	3.66
Engine - Stroke (mm)	64.4
Engine - Stroke (in)	2.54
Engine - Displacement (cc)	875
Engine - Displacement (ci)	53.4
Engine - Compression Ratio	10.5:1
Engine - Starter	Electric
Engine - Fuel Requirements	Regular
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Fuel Injector	Yes
Carburetion - Carburetor	No
Carburetion - Carburetion Type	Fuel Injected

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Continuously Variable (CVT)
Transmission - Overdrive	No
Transmission - Primary Drive (Rear Wheel)	Shaft
Transmission - Primary Drive (Engine / Transmission)	Belt
Transmission - Reverse	Yes
Transmission - Transmission Brand	Polaris Variable Transmission (PVT)
Transmission - Hi / Low Range	Yes
Transmission - Primary Drive (Front Wheel)	Shaft

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	116.5
Dimensions - Length (mm)	2960
Dimensions - Width (in)	60
Dimensions - Width (mm)	1520
Dimensions - Height (in)	76
Dimensions - Height (mm)	1930
Dimensions - Wheelbase (in)	81
Dimensions - Wheelbase (mm)	2060
Dimensions - Turning Radius (ft)	13.4
Dimensions - Ground Clearance (in)	12
Dimensions - Ground Clearance (mm)	305
Dimensions - Length (ft)	9.71
Dimensions - Length (ft/ft)	9
Dimensions - Length (ft/in)	8.5
Weight	Standard
Weight - Dry Weight (lbs)	1342
Weight - Dry Weight (kg)	610
Weight - Payload Capacity (lbs)	1500
Weight - Payload Capacity (kgs)	680.4
Weight - Towing Capacity (lbs)	2000
Weight - Towing Capacity (kgs)	907.2
Capacities	Standard
Capacities - Fuel Capacity (gal)	10
Capacities - Fuel Capacity (l)	37.9
Performance	Standard
Performance - Engine Displacement to Weight (cc)	0.65

EXTERIOR

Construction	Standard
Construction - Frame	Steel
Construction - Body Material	Plastic
Exterior Guards	Standard
Exterior Guards - Chain Guard	No
Exterior Guards - Brush Guard	Yes
Exterior Guards - Light Guard	No
Exterior Guards - Front Mud Guards	No
Exterior Covers	Standard
Front Bumper	Standard
Skid Plate	Standard
Skid Plate - Bash Plate (Front)	Yes
Skid Plate - Full Length Skid Plate	Yes
Cab Cage	Standard
Cab Rollbar	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Independent Double A-Arm
Front Suspension - Front Travel (in)	10
Front Suspension - Front Travel (mm)	254
Front Suspension - Front Adjustable Fork Pre-Load	Yes
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Independent Double A-Arm
Rear Suspension - Rear Travel (in)	10
Rear Suspension - Rear Travel (mm)	254
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	No
Rear Suspension - Number Rear Shock Absorbers	2
Rear Suspension - Rear Suspension Material	Steel
Rear Suspension - Air Adjustable	No

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Aluminum
Wheels - Front Tire Diameter (in)	26
Wheels - Rear Tire Diameter (in)	26
Tires	Standard
Tires - Tire Brand	Polaris PXT
Tires - Front Tire Width	9
Tires - Front Wheel Diameter	12
Tires - Rear Tire Width	11
Tires - Rear Wheel Diameter	12
Tires - Front Tire (Full Spec)	Polaris PXT: 26 x 9-12
Tires - Rear Tire (Full Spec)	Polaris PXT: 26 x 11-12

BRAKES

Brakes	Standard
Brakes - Front Brake Type	Hydraulic Disc
Brakes - Rear Brake Type	Hydraulic Disc

SEATS

Seat	Standard
Seat - Seat Type	Bench
Seat - Seat Material	Vinyl
Seat - Folding	No
Seat - Headrest	Yes
Seat Specifications	Standard
Seat Specifications - Number Of Seats	3
Seat Specifications - Number Of Rows	1
Grab Rail or Strap	Standard

INSTRUMENTATION

Digital Instrumentation	Standard
Clock	Standard
Tachometer	Standard
Trip Odometer	Standard
Speedometer	Standard
Hour Meter	Standard
Temperature Warning	Standard
Temperature Warning - Temperature Warning Type	Light
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Gauge

STORAGE

Underseat Storage	Standard
Cupholder	Standard

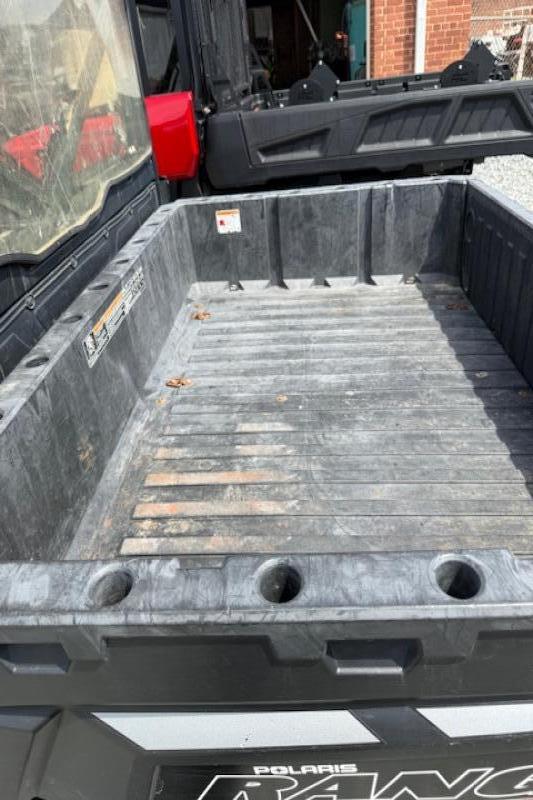

Cargo Bed	Standard
Cargo Bed - Bed Length (in)	36.5
Cargo Bed - Bed Length (mm)	930
Cargo Bed - Bed Height (in)	11.5
Cargo Bed - Bed Height (mm)	290
Cargo Bed - Bed Width (in)	54
Cargo Bed - Bed Width (mm)	1370
Cargo Bed - Bed Capacity (lbs.)	1000
Cargo Bed - Bed Capacity (kgs.)	453.6
Cargo Bed - Cargo Bed Tilt	Yes
Cargo Bed - Cargo Bed Material	Polyethylene
Cargo Bed - Bed Volume (ft3)	13.1
Cargo Bed - Bed Volume (m3)	0.37
Cargo Bed - Integral Tie-Down Hooks	Yes
Glove Box / Dash Storage	Standard

LIGHTS

Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

CONVENIENCE

Power Outlet	Standard
Seat Belts	Standard

PAINT & FINISH

Paint	Standard
Paint - Metallic	No

DRIVE LINE

Driveline	Standard
Driveline - Driveline Brand	On-Demand™
Driveline - Driveline Type	Selectable 4X2 / AWD
Driveline - Number Of Driveline Modes	2
Driveline - Rear Unlocking Differential	Yes
Driveline - Rear Solid Axle	No
Limited Slip Differential	Standard
Limited Slip Differential - Limited Slip Differential Location	Center
Differential Lock	Standard
Differential Lock - Differential Lock Location	Rear

STEERING

Steering	Standard
Steering - Steering Type	Power
Steering - Steering Control	Steering Wheel

TOWING & HAULING

Rear Hitch	Standard
Rear Hitch - Size (in)	2
Rear Hitch - Size (cm)	5.1
Rear Hitch - Rear Hitch Type	Receiver

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
